287

Name: 287 Blade fuse
Brand: Selittel
SKU: 287
Availability: InStock

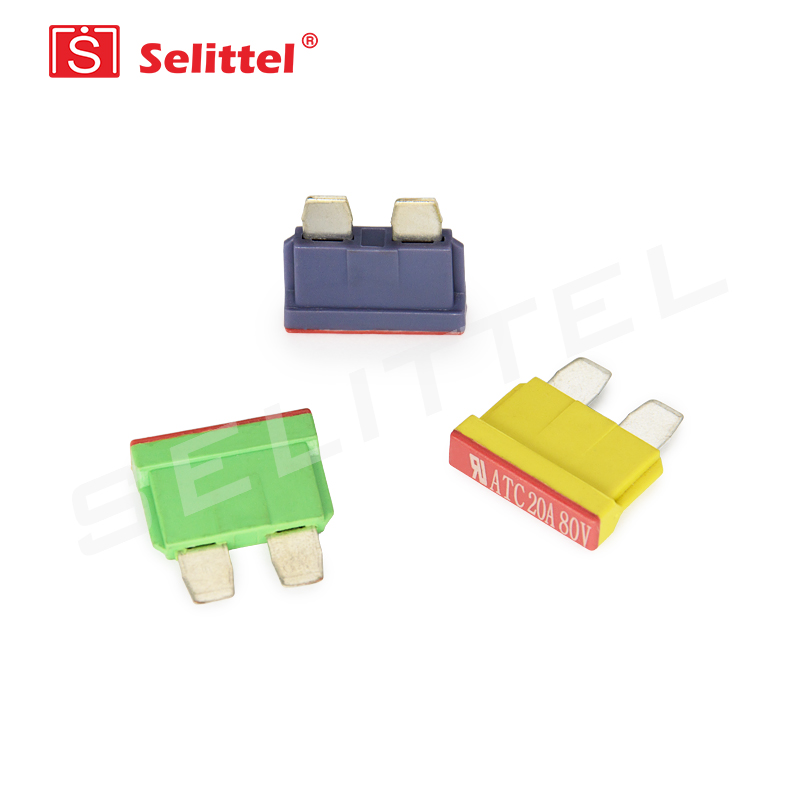

Blade Fuses

Product Name: Blade fuse

PN: 287

Current Rating: 1A - 40A

Voltage Rating: 32V

Certifications:

* ● Certified ○ Not Certified

Part Number	Current Rating	Voltage Rating	Housing Color	Cold Resistance (mΩ)	Voltage Drop (mV)	Interrupting Rating	*	*	Material
0287001	1A	32V	Black	123	176	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287002	2A	32V	Grey	53.5	141	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287003	3A	32V	Violet	31.1	137	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287004	4A	32V	Pink	22.8	136	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287005	5A	32V	Tan	17.85	128	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
028707.5	7.5A	32V	Brown	10.91	116	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287010	10A	32V	Red	7.7	109	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287015	15A	32V	Blue	4.8	102	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287020	20A	32V	Yellow	3.38	98	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287025	25A	32V	Natural	2.52	92	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287030	30A	32V	MediumSeaGreen	1.97	84	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287035	35A	32V	Green	1.61	87	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
0287040	40A	32V	Orange	1.44	96	1000A@32V	●	●	PA66 (UL94 V-2), Tin- or silver-plated
