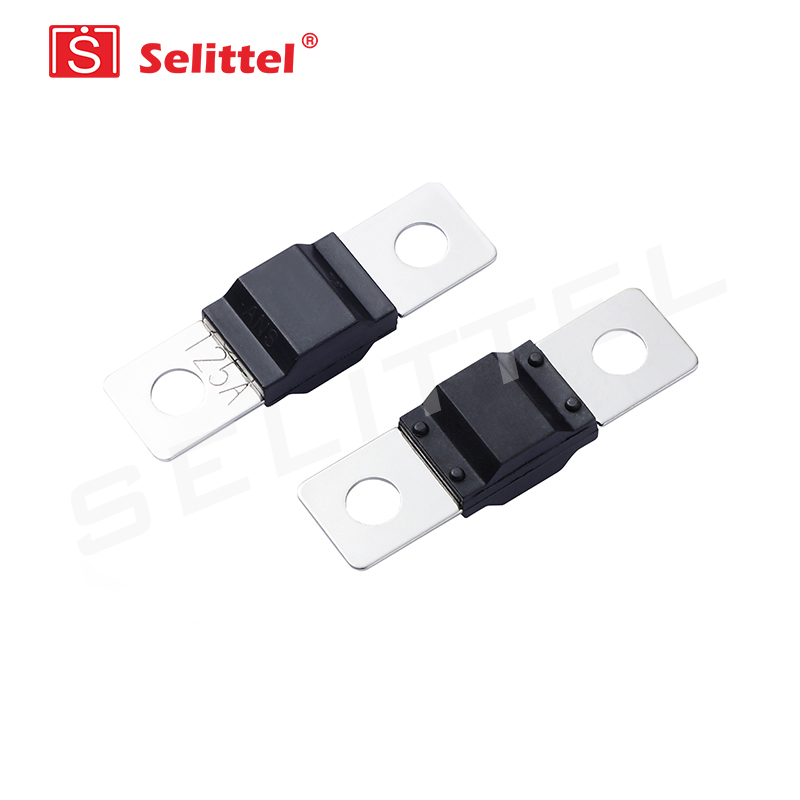

Product Name: Bolt-down fuses
PN: ANS-S-B
Current Rating: 30A - 200A
Voltage Rating: 58V
Certifications:
Contact us for more specifications or customization.
Datasheet download
| Part Number | Current Rating | Voltage Rating | Cold Resistance (mΩ) | Interrupting Rating | Mounting Hole Dimension |
Mounting Hole Qty |
* |
Material |
|---|---|---|---|---|---|---|---|---|
| ANS-S-B-030 | 30A | 58V | 1.7 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-040 | 40A | 58V | 1.25 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-050 | 50A | 58V | 0.9 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-060 | 60A | 58V | 0.6 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-070 | 70A | 58V | 0.55 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-080 | 80A | 58V | 0.5 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-100 | 100A | 58V | 0.45 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-125 | 125A | 58V | 0.35 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-150 | 150A | 58V | 0.25 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-175 | 175A | 58V | 0.22 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-200 | 200A | 58V | 0.2 | 1000A@58V | M5 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-030-M6 | 30A | 58V | 1.7 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-040-M6 | 40A | 58V | 1.25 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-050-M6 | 50A | 58V | 0.9 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-060-M6 | 60A | 58V | 0.6 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-070-M6 | 70A | 58V | 0.55 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-080-M6 | 80A | 58V | 0.5 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-100-M6 | 100A | 58V | 0.45 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-125-M6 | 125A | 58V | 0.35 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-150-M6 | 150A | 58V | 0.25 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-175-M6 | 175A | 58V | 0.22 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| ANS-S-B-200-M6 | 200A | 58V | 0.2 | 1000A@58V | M6 | 2 | ● | PA, Nickel-plated Zinc Alloy |
| Brand | Part Number |
|---|---|
| Littelfuse | MIDI / 0498XXX |
| Bussmann | AMI |
| PEC | SBFW-L |
File: ANS-S-B.pdf
Certificate No.: M.2021.206.C62082
Issuer: UDEM
Standard: EN ISO 8820-5:2015
File: CE ANS BOLT-ON FUSE.png
Verification: https://www.udem.com.tr/en/industry
