ACM

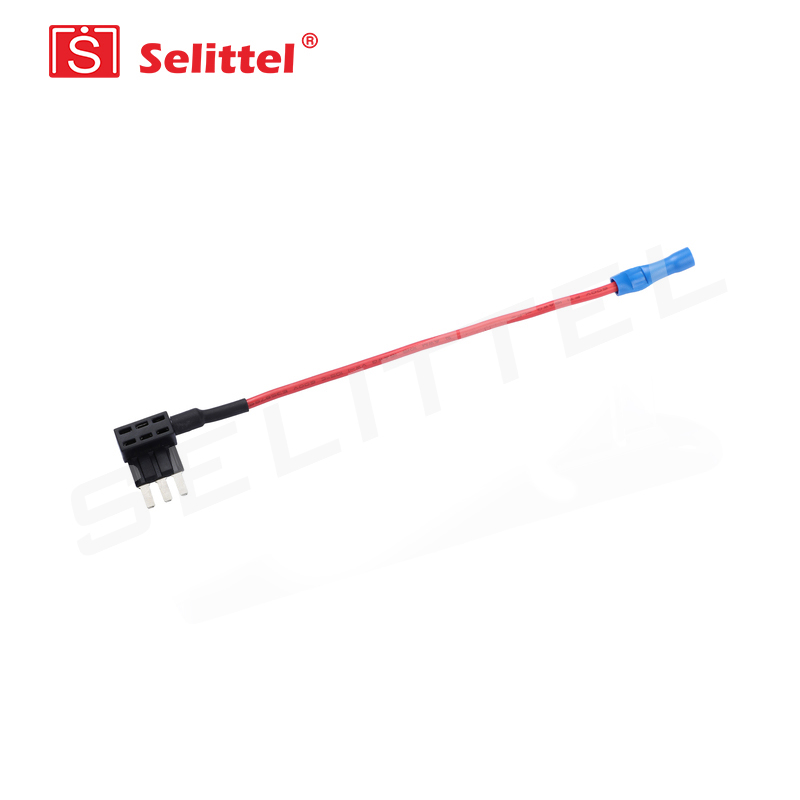

Name: ACM Blade fuse holder
Brand: Selittel
SKU: ACM
Availability: InStock

Blade Fuses Holder

Product Name: Blade fuse holder

PN: ACM

Current Rating: 30A

Voltage Rating: 125V

Certifications:

Customizable Wire Leads
Two types of tail terminals can be selected

Part Number	Max Current Rating	Description	Wire Specifications	Material
ACM	30A	Custom terminal or stripped end	Customizable	PA, PVC, Brass
ACM-A	30A	5mm stripped end	UL1015 16AWG RED 150 mm (5.91 inch)	PA, PVC, Brass
ACM-B	30A	Blue butt splice connector	UL1015 16AWG RED 150 mm (5.91 inch)	PA, PVC, Brass
ACM-C	30A	4mm female bullet terminal	UL1015 16AWG RED 150 mm (5.91 inch)	PA, PVC, Brass
ACM-D	30A	6.3mm (250 Series) female quick disconnect terminal	UL1015 16AWG RED 150 mm (5.91 inch)	PA, PVC, Brass

Certificate No.: 0489949

Issuer: NQA

Standard: IATF 16949:2016
